Jenny Single Stage Wheeled Portable Gasoline Engine Air Compressors

You are here: Home > Jenny Portable Compressors > Jenny Single Stage Wheeled Portable Air Compressors > Jenny Single Stage Wheeled Portable Gasoline Engine Air Compressors

Download and Print Jenny Single Stage Wheeled Portable Gasoline Engine Air Compressors

Standard Features

Heavy-duty single stage cast iron compressor pump Made in Somerset, PA USA

Splash lubricated

Belt driven with a large flywheel for extra cooling and easier start-up

Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil

Directional air shroud for reduced pump temperatures

Totally enclosed heavy-duty beltguard

8 & 15 gallon tanks are low profile, powder coated twin tank receivers

17 and 30 gallon tanks are powder coated and ASME certified

Convenient lifting handles

Anti-vibration feet

Pneumatic tire(s)

Protectively mounted fittings

Manual tank drain(s)

Large canister intake filter with replaceable filter elements

Special unloading valves to assist in engine starting

Stainless steel braided discharge hose

Tank gauge

Regulator and outlet pressure gauge

Pressure relief safety valve

Designed, tested and proven to meet the demands of the construction and rental industry request

Jenny Single Staged Wheeled Portable Gasoline Engine Air Compressors - Model K5HGA-30P
Gasoline Engine

Constant run control set at 105-125 PSI

High quality pilot valve

Pneumatic throttle idle control

Honda GX Series OHV Engine

MODEL

Pump

HP

Tank
Gallon

Drive

CFM @
100 PSI

CFM @
125 PSI

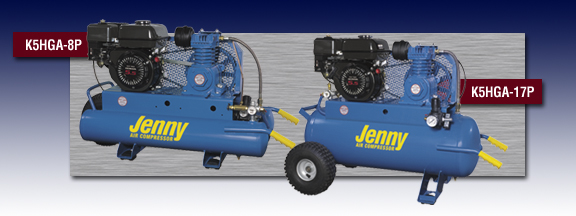

K5HGA-8P

K

5.5

8

Honda
GX
Gasoline
Engine
Recoil
Start

8.9

8.6

K5HGA-15P

15

K5HGA-17P

17

K5HGA-30P

30

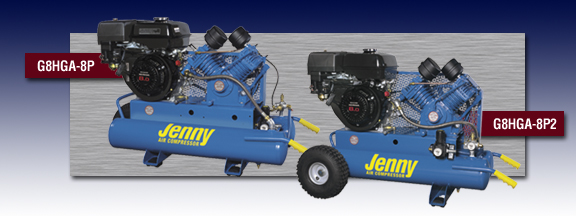

G8HGA-8P

G

8

8

16.2

15.6

G8HGA-15P

15

G8HGA-17P

17

G8HGA-30P

30

J11HGA-30P

J

11

30

Electric

21.3

20.9
