| Single
Stage |
||||||||||||||||
| *MODEL |
HP RANGE Electric |
NO
CYC. |
BORE |
STROKE |
MAX.
PSI |
APPX SHIP WT. |
A |
B |
C |
D |
E |
F Diam Groove |
G |
H |
I |
P |
| F
& FU |
1/3
- 1 |
1
|
2
1/2 |
1
3/4 |
150 |
36 |
7
3/4 |
5
9/16 |
3
3/8 |
10
3/8 |
10
1/4 |
10
3/8-1A |
3/8 |
9/32 |
7/8 |
N/A |
| K
& KU |
1
- 2 |
2 |
2
1/2 |
2 |
150 |
50 |
10 |
5
7/8 |
5
3/4 |
11
1/8 |
12
3/16 |
10
3/8-1A |
3/8 |
11/32 |
7/8 |
1/2 |
| G
& GU |
3-5 |
4 |
2
1/2 |
2
3/8 |
150 |
85 |
11
1/2 |
7
1/8 |
6
1/8 |
15
1/4 |
14
1/2 |
10
3/8-2A |
1/2 |
11/32 |
7/8 |
1/2 |

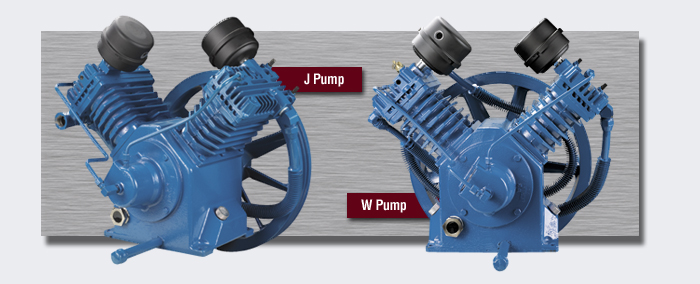

| J
& JU |
3-5 |
4 |
2
1/2 |
3
1/4 |
150 |
175 |
16
5/16 |
9
1/8 |
6
3/4 |
20 |
16
1/2 |
16-2A |
1/2 |
11/32 |
1
1/8 |
1/2 |
| Two
Stage |
||||||||||||||||
| GT
& GTU |
1
1/2-5 |
4 |
21/2
(3)-21/2 |
2
3/8 |
200 |
110 |
14
3/8 |
7
1/8 |
6
1/8 |
15
1/2 |
14
1/2 |
13
1/2-2A |
1/2 |
11/32 |
7/8 |
1/2 |
| W
& WU |
3-5 |
4 |
21/2
(3)-21/2 |
3
1/4 |
200 |
175 |
16
5/16 |
9
1/8 |
6
3/4 |
20 |
16
1/2 |
16-2A |
1/2 |
11/32 |
1
1/8 |
1/2 |
| U |
7
1/2 10 |
4 |
4
3/4 X 2 1/2 |
3 |
200 |
340 |
21
1/16 |
10
5/8 |
6
1/4 |
23 |
20
3/8 |
18-3B |
1 |
17/32 |
1
3/8 |
1 |
| T |
15-25 |
4 |
5 1/2 X 3 |
5 |
200 |
750 |
31 |
16 |
10 |
42 |
34 |
25
1/2-4B |
1 |
25/32 |
2
3/16 |
1
1/2 |
| NOTE - Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch. When replacing pumps, consult factory regarding applicable conversion kit that may be required. |
||||||||||||||||
